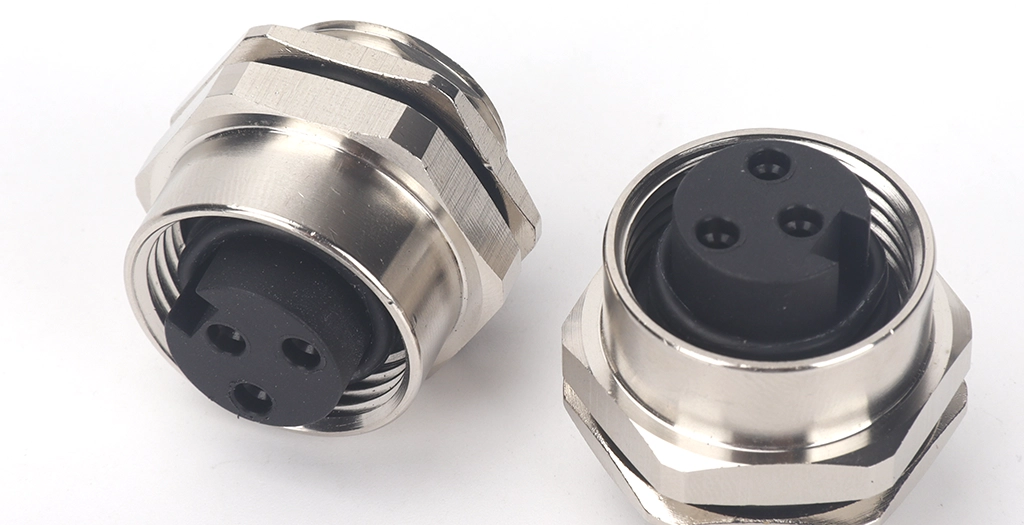

7/8 panel connector, waterproof 7/8 panel connector
Technical Date
| Pin No. | 2 | 2+PE | 3+PE | 4+PE | 5+PE |
| Rated current | 13A | 9A | |||
| Rated voltage | 300V | ||||
| Operating Temperature | -25℃~85 ℃ | ||||
| Degree of protection | IP67 | ||||
| Connector locking system | Screw locking | ||||
| Mechanical operation | >500 mating cycles | ||||
| Contact resistance | ≤5mΩ | ||||
| Material of connector | Cu-Ni,PVC | ||||
| Contact plating | Au(gold plating) | ||||
