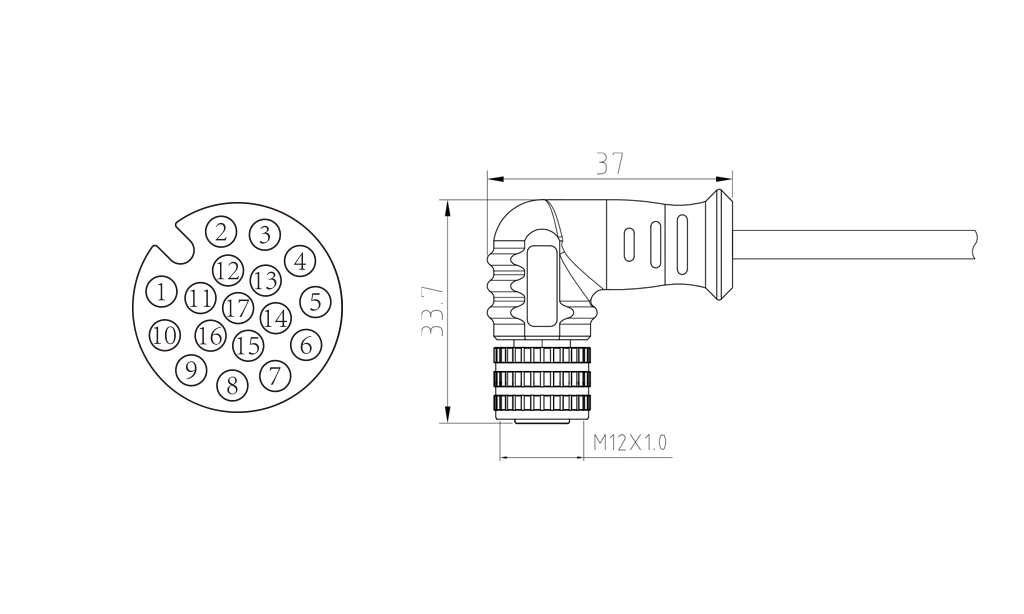

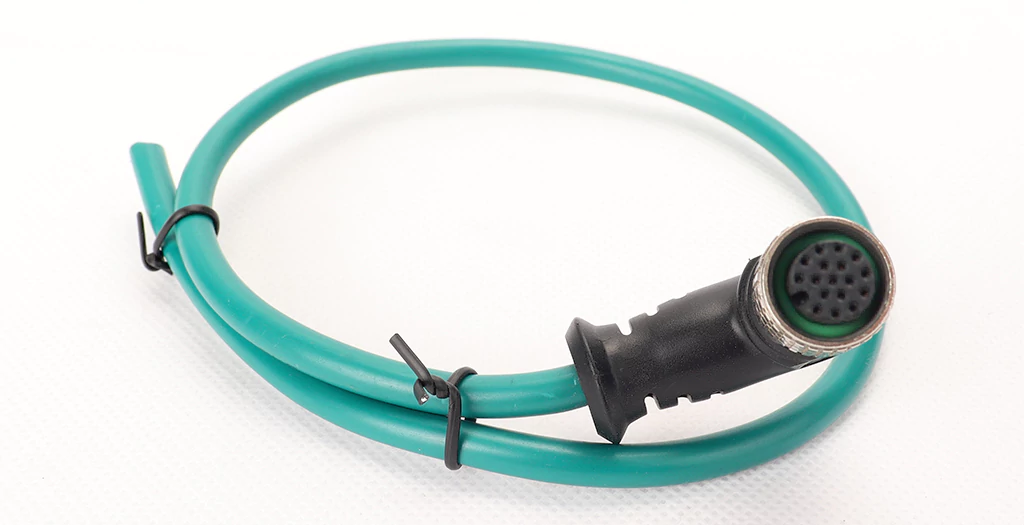

The female elbow of the 17Pin molded M12 connector plays a vital role in the field of precision connection and is a key component to ensure the stable operation of complex systems.

Its appearance design is simple yet exquisite. It may seem plain on the surface, but there are hidden subtleties within. The curvature of the elbow part is obtained through a large number of simulation tests and optimizations, which can skillfully avoid various obstacles inside the equipment, such as interference from components in narrow spaces and the irregular routing of wire grooves, ensuring a tight and smooth docking with the male connector.

The internal connectors are made of high-quality alloy materials. After thousands of insertion and removal tests, they can still maintain an extremely low contact resistance, safeguarding stable and efficient signal transmission. Even under the circumstances of long-term and high-frequency use, there will be no problems such as signal interruption or attenuation.

In the harsh application scenario of the control system of a large particle accelerator, it occupies a central position, silently undertaking the task of massive data interaction in multiple fields such as beam control and data acquisition. Facing high-intensity electromagnetic radiation, tiny installation spaces and extremely high requirements for signal stability, it relies on its reliable connection performance to ensure error-free communication between various systems, helping researchers accurately operate the particle accelerator, explore the mysteries of the microscopic world and provide solid technical support for frontier scientific research.
