M12 Molded Connector,M12 Waterproof Connector Cable
The M12 circular connector that we produce conform to international standard for IEC61076-2-101 with M12*1.0 screw locking.
• Waterproof rating is IP67/IP68, protected from dust and water during immersion,resistant to many oils and chemical
• M12 offers many different cable connectors, panel mounted receptacles, field attachable/installable connectors and its accessories. Connectors have industry- standard A, B, D ,X,S,T,K,Lcoding, for both screw-locking and quick-locking system.
Technical Date
| Pin for reference | ||||||
 |  |  |  |  |  |  |
 | |  |  |  |  |  |
| Pin No. | 3 | 4 | 4 | 5 | 5 | 6 | 8 | 12 | 17 | 8 | 3+PE | 3+PE | 4+PE | 4+FE |
| Coding | A | D | A | B | A | X | S | T | K | L | ||||
| Type | Molded type | |||||||||||||
| Rated current | 4A | 4A | 2A | 1.5A | 0.5A | 12A | 12A | 16A | 16A | |||||
| Rated voltage | 250V | 60V | 30V | 30V | 60V | 630V | 60V | 800V | 63V | |||||
| Operating Temperature | -25℃~85 ℃ | |||||||||||||
| Degree of protection | IP67 | |||||||||||||
| Connector locking system | Screw locking | |||||||||||||
| Mechanical operation | >500 mating cycles | |||||||||||||
| Contact resistance | ≤5mΩ | |||||||||||||
| Material of connector | Cu-Ni,PVC | |||||||||||||
| Contact plating | Au(gold plating) | |||||||||||||
Dimension Diagram of M12 Molded Connector
 |  |

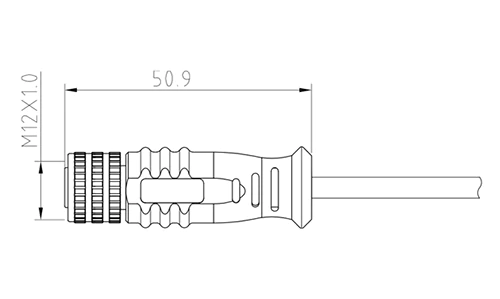

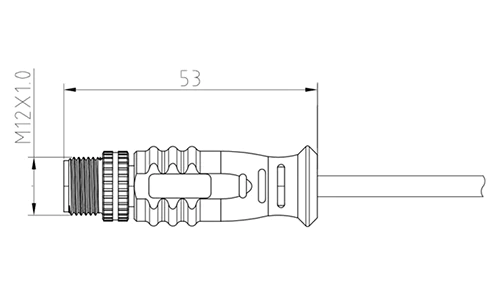

| M12 Molded Connector Male straight | M12 Molded Connector Female straight |
 |  |

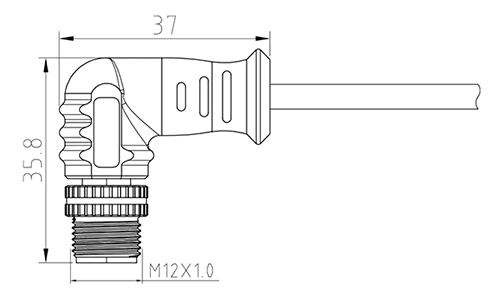

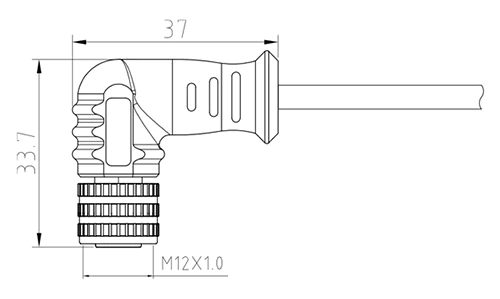

| M12 Molded Connector Male 90 degree | M12 Molded Connector Female 90 degree |

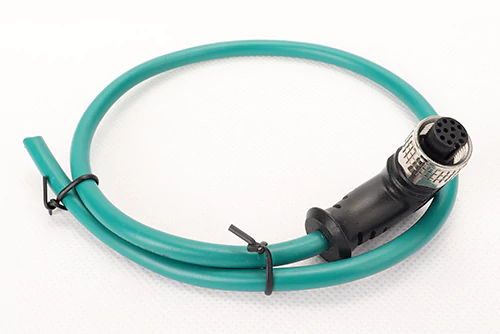

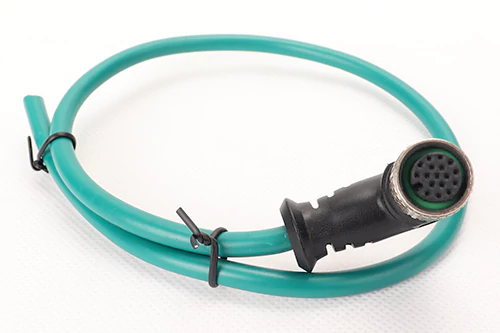

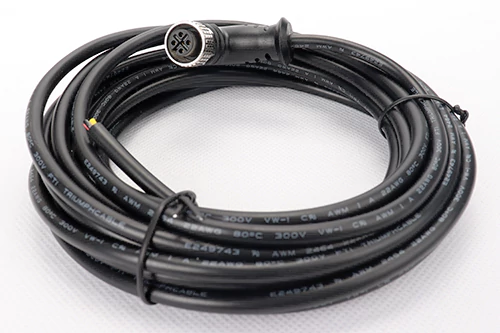

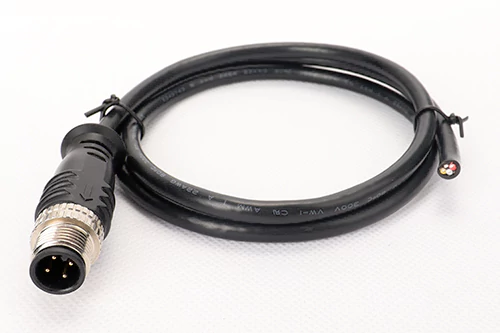

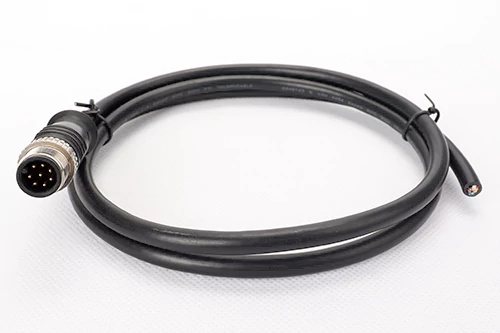

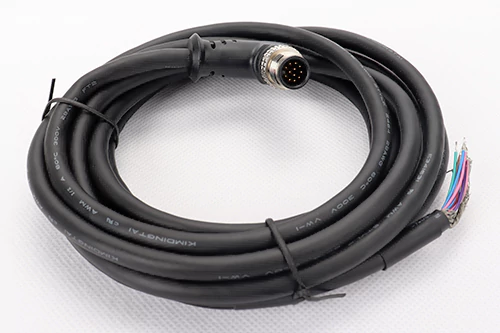

Product Display of M12 Molded Connector
 |  |

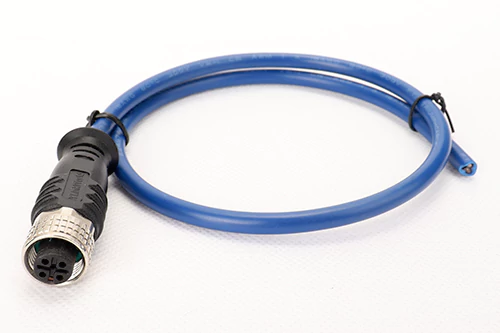

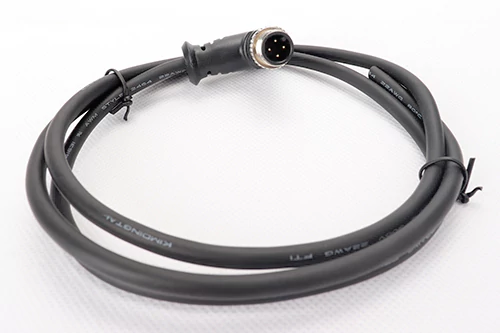

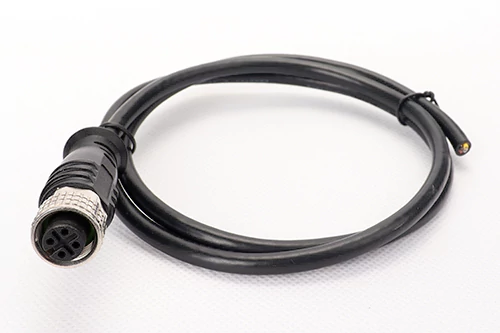

| 4Pin M12 Molded Connector Male straight | 4Pin M12 Molded Connector Female straight |
 |  |

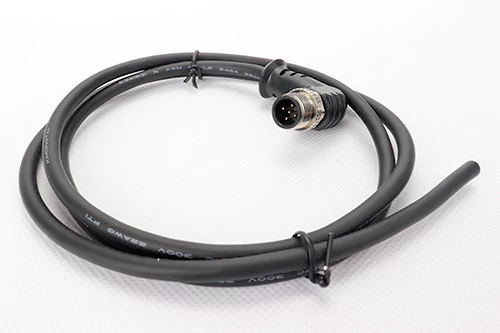

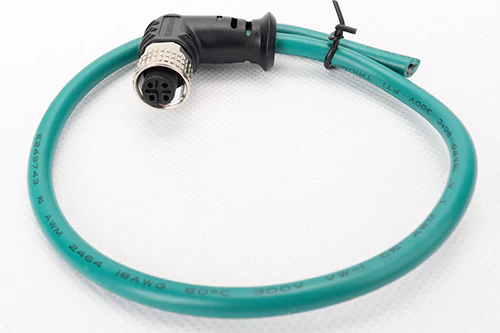

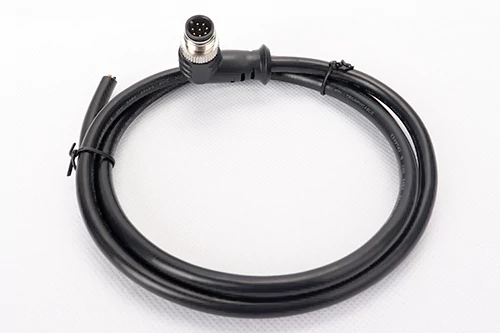

| 4Pin M12 Molded Connector Male 90 degree | 4Pin M12 Molded Connector Female 90 degree |
 |  |

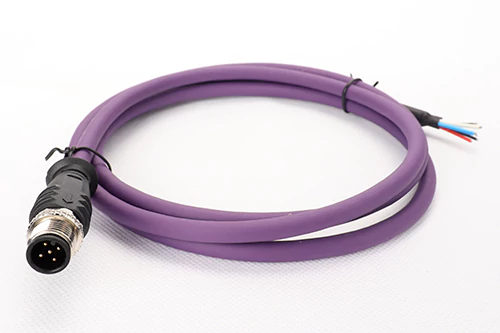

| 5Pin M12 Molded Connector Male straight | 5Pin M12 Molded Connector Female straight |
 |  |
| 5Pin M12 Molded Connector Male 90 degree | 5Pin M12 Molded Connector Female 90 degree |
 |  |

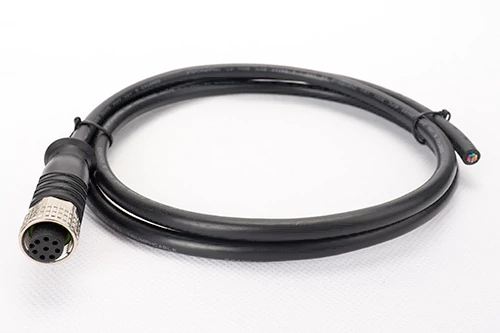

| 8Pin M12 Molded Connector Male straight | 8Pin M12 Molded Connector Female straight |
 |  |

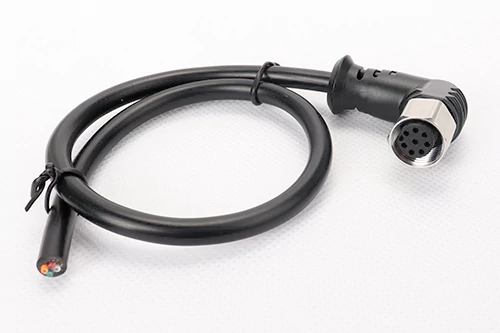

| 8Pin M12 Molded Connector Male 90 degree | 8Pin M12 Molede Connector Female 90 degree |
 |  |

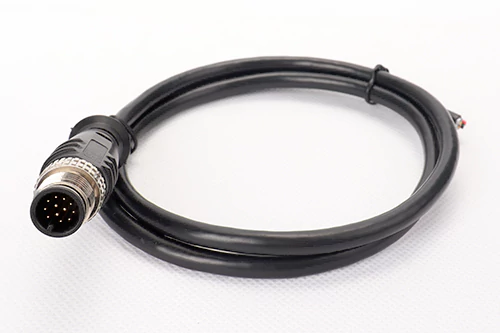

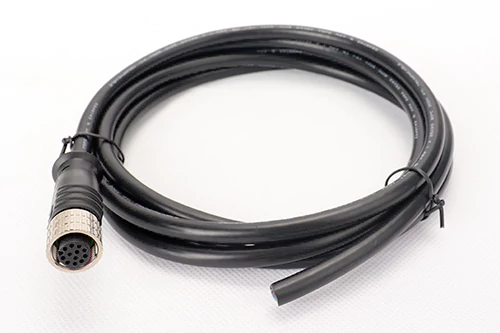

| 12Pin M12 Molded Connector Male straight | 12Pin M12 Molded Connector Female straight |
 |  |
| 12Pin M12 Molded Connector Male 90 degree | 12Pin M12 Molded Connector Female 90 degree |
 |  |

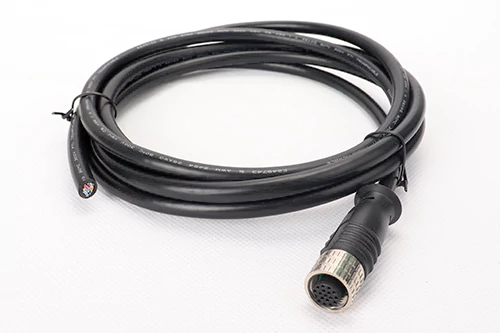

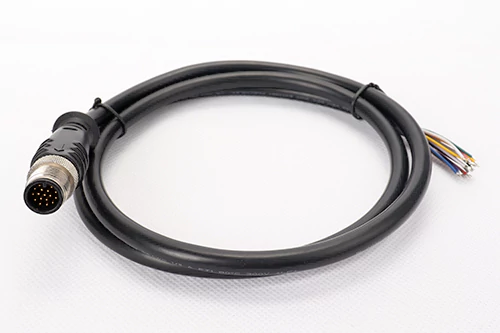

| 17Pin M12 Molded Connector Male straight | 17Pin M12 Molded Connector Female straight |
 |  |

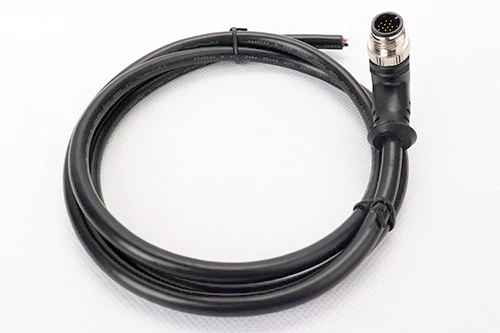

| 17Pin M12 Molded Connector Male 90 degree | 17Pin M12 Molded Connector Female 90 degree |
