T/Y - type M12 connector A - coded splitter
Technical Date
| Pin No. | 4 | 5 | 8 |
| Coding | A | ||
| Pin for reference |  |  |  |
| Type | Molded type | ||
| Rated current | 4A | 4A | 2A |
| Rated voltage | 250V | 60V | 30V |
| Operating Temperature | -25℃~85 ℃ | ||
| Degree of protection | IP67 | ||
| Connector locking system | Screw locking | ||
| Mechanical operation | >500 mating cycles | ||
| Contact resistance | ≤10mΩ | ||
| Material of connector | Cu-Ni, PVC | ||
| Contact plating | Au(gold plating) | ||

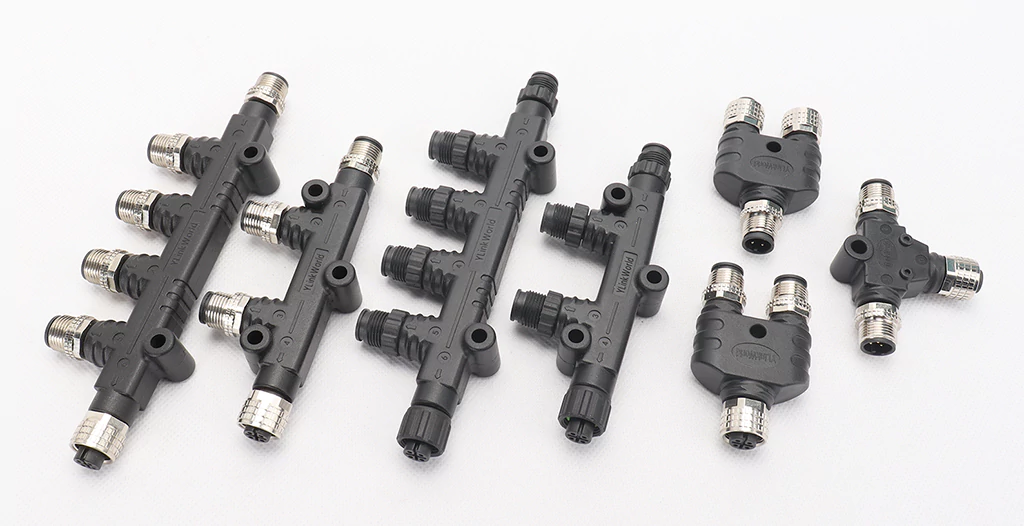

Product Display of M12 Splitter
 |  | |
| Y type one to two port splitter | ||
 |  |  |
| T type one to five port splitter | T type one to three port splitter | T type one to two port splitter |
 |  | |
| T type one to five port splitter（Anti - corrosion） | T type one to three port splitter（Anti - corrosion） | |
