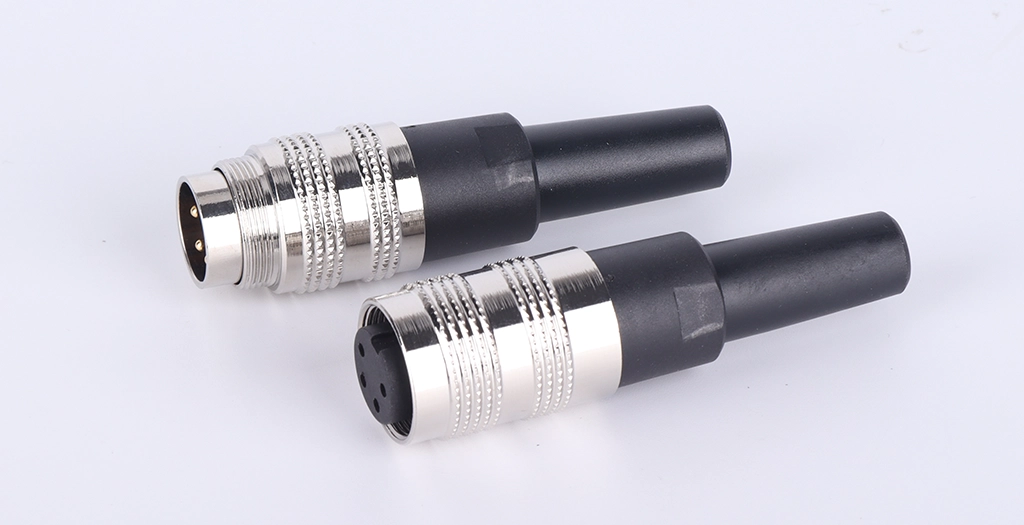

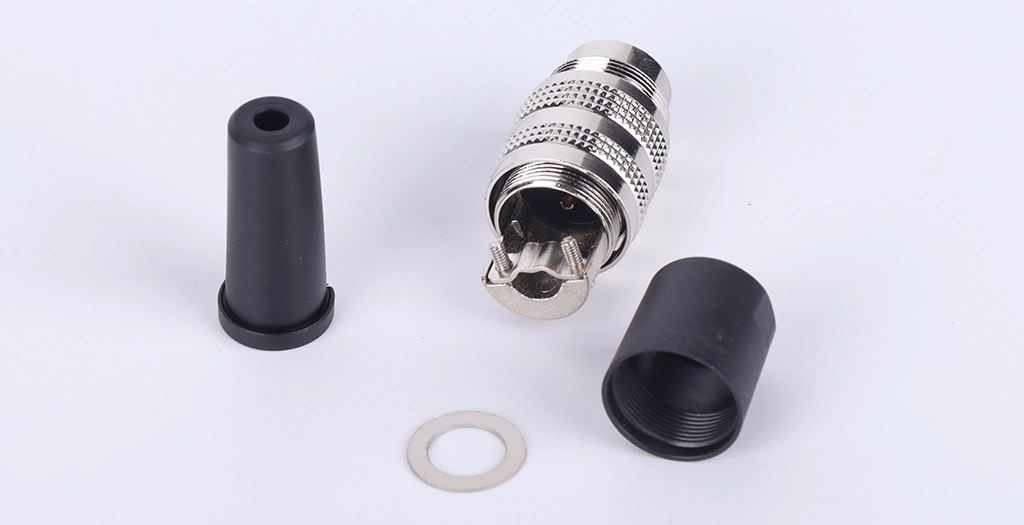

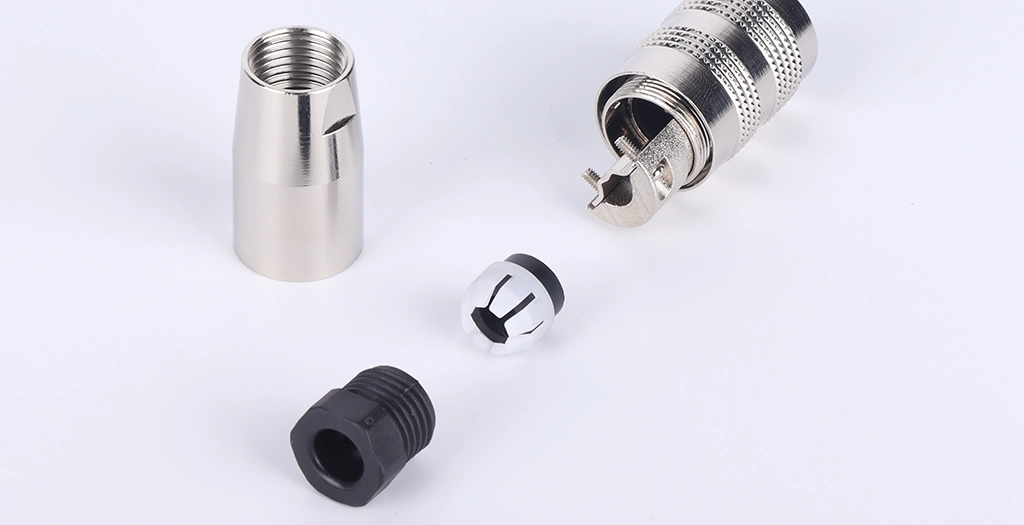

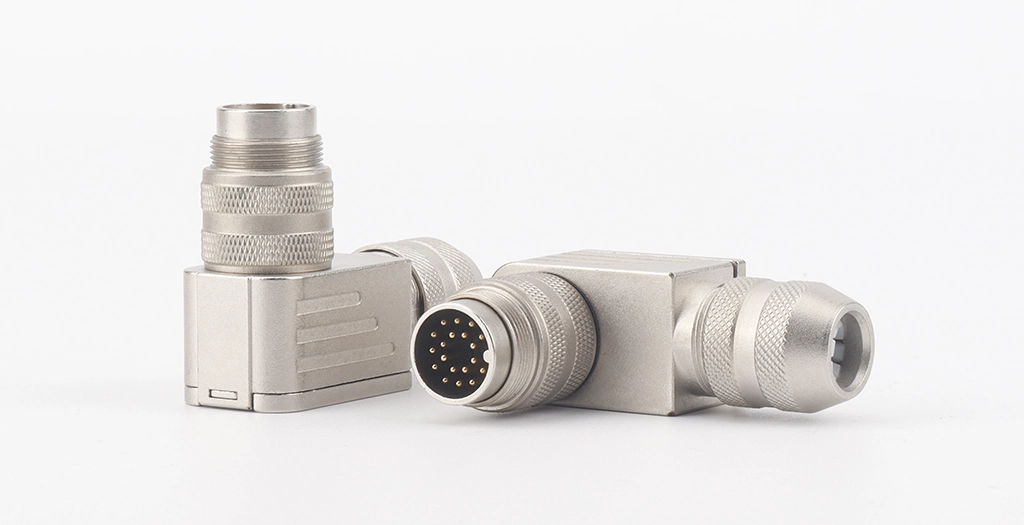

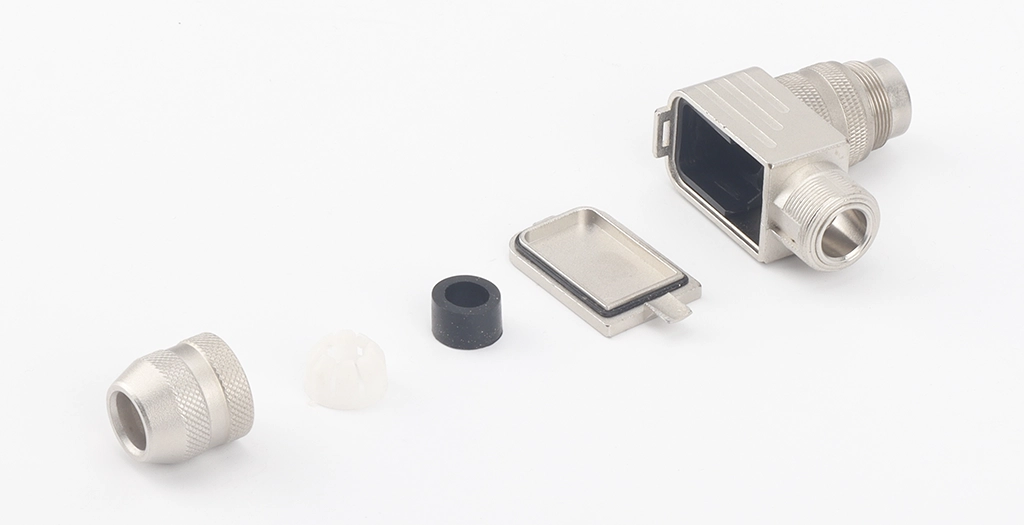

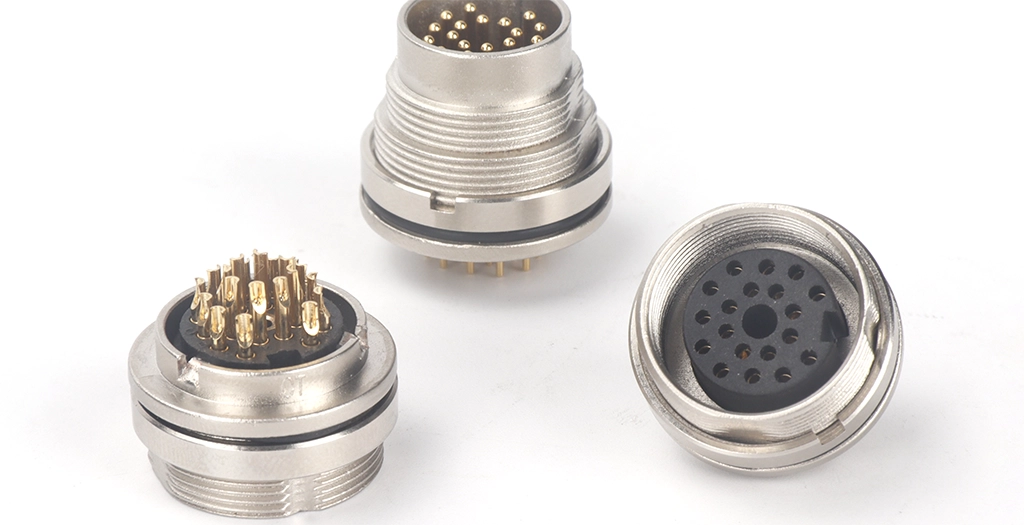

M16 Connector,M16 Waterproof Connector Cable
Technical Date
| Pin No. | 2 | 3DIN | 4 | 5 | 5(Stereo) | 6DIN | 7 | 7DIN | 8DIN | 12 | 14 | 16 | 19 | 24 |
| Rated current | 7A | 6A | 5A | 3A | 1A | |||||||||
| Rated voltage | 250V(32V) | 60V(32V) | 250V(32V) | 125V(32V) | 60V (32V) | |||||||||
| Operating Temperature | -20℃~80℃ | |||||||||||||
| Degree of protection | IP67 | |||||||||||||
| Connector locking system | Screw locking | |||||||||||||
| Mechanical operation | >500 mating cycles | |||||||||||||
| Contact resistance | ≤5mΩ | |||||||||||||
| Material of connector | Cu-Ni,PVC | |||||||||||||
| Contact plating | Au(gold plating) | |||||||||||||
