Male and female heads of M8 assembled connectors, 3Pin, 4Pin, 5Pin, 6Pin, 8Pin field - wiring plugs
Technical Date
| Pin No. | 3 | 4 | 4 | 5 | 6 | 8 |
| Coding | A | D | B | A | ||
| Pin for reference |  |  |  |  |  |  |
| Type | Assembled type | |||||
| Rated current | 3A | 3A | 1A | |||
| Rated voltage | 60V | 30V | 30V | |||
| Operating Temperature | -25℃~85 ℃ | |||||
| Degree of protection | IP67 | |||||
| Connector locking system | Screw locking | |||||
| Mechanical operation | >500 mating cycles | |||||
| Contact resistance | ≤5mΩ | |||||
| Material of connector | Cu-Ni,PVC | |||||
| Contact plating | Au(gold plating) | |||||

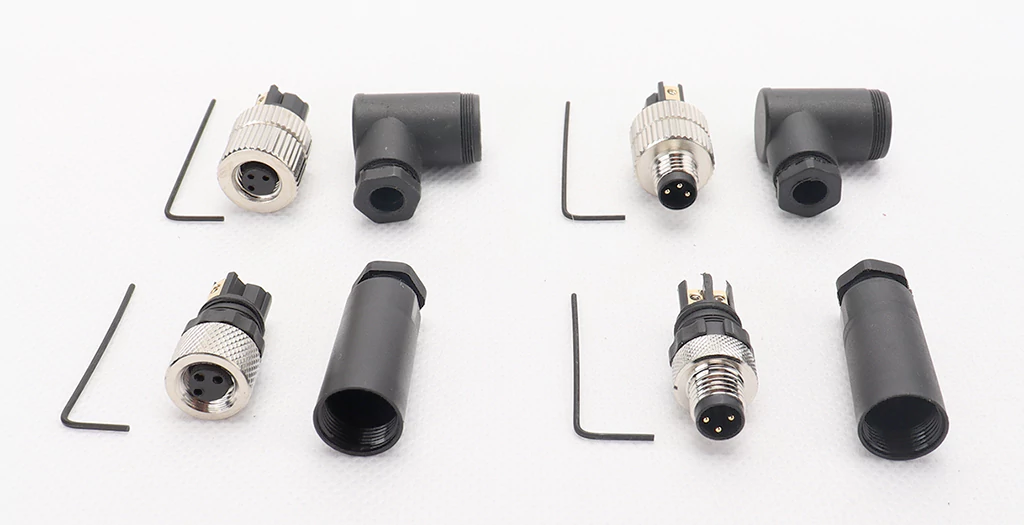

Product Display of M8 Assembled Connectors
 |  |  |  |
| male, straight | female, straight | female, 90degree | male, 90degree |
